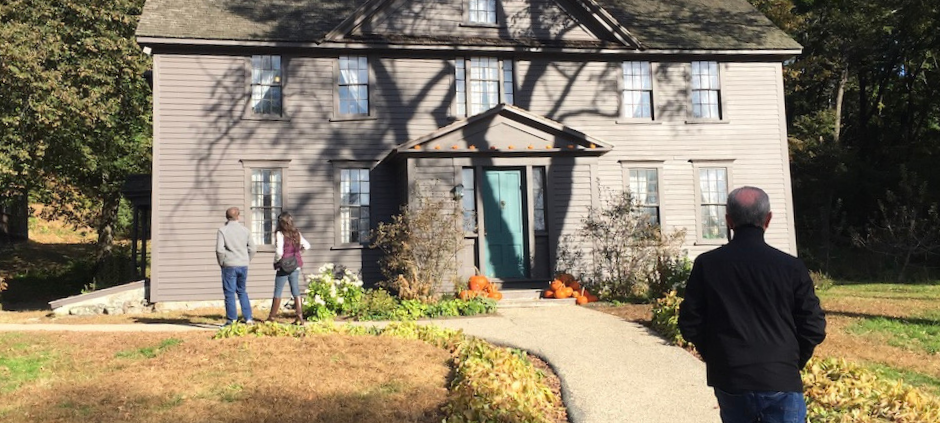

Case Study: Geothermal Installation at Louisa May Alcott’s Orchard House, Concord, MA
In 2017–2018, EnergySmart Alternatives installed a geothermal heat pump system at Louisa May Alcott’s Orchard House in Concord, Massachusetts, the beloved home where Louisa May Alcott wrote Little Women. Originally built in the 1660s and listed on the National Register of Historic Places, the property presented unique mechanical and preservation challenges.
With no insulation and original single-pane windows, the building required a heating and cooling solution that would improve comfort without compromising its historic integrity.
This project demonstrates how geothermal technology can successfully modernize even the most sensitive and historically significant structures.
Why Geothermal Was the Right Choice for a Historic Landmark
Historic buildings demand thoughtful system design. In this case, geothermal offered several distinct advantages:
1. End-of-Life Heating System
The existing fossil fuel system had reached the end of its service life. Replacement was necessary, creating an opportunity to upgrade to a cleaner, more efficient solution.
2. Poor Performance & Complicated Controls
The previous heating and cooling system was overly complex, difficult to service, and failed to maintain consistent comfort levels for visitors and staff.
3. No Outdoor Equipment Allowed
Because of the building’s historic designation, outdoor condensers and visible mechanical equipment were prohibited. Unlike conventional HVAC systems, geothermal operates without outdoor units—making it ideal for preservation-restricted properties.
4. Quiet Operation for a Museum Environment
As a public museum welcoming thousands of visitors annually, quiet performance was critical. Geothermal systems operate with minimal sound, enhancing the visitor experience.
5. Available Space for Drilling
The property allowed for vertical borehole installation without disturbing the historical structure itself.
Installation Overview
The project included eight 6-inch diameter vertical boreholes, spaced approximately 15 feet apart. Each borehole was fitted with geothermal piping and sealed with thermal grout to ensure optimal long-term heat transfer.
The geothermal loop lines were routed into the basement through a newer section of concrete foundation, approximately four feet below grade, preserving the original historic structure.
Inside the building, the system was connected to four geothermal heat pumps strategically located throughout the property. The loop system was flushed with an ethanol-based antifreeze solution to ensure reliable year-round operation.
A new forced air duct system was installed to improve airflow and temperature consistency throughout the museum spaces.
To maintain the building’s historic appearance:
- Discreet room sensors were installed instead of modern touchscreen thermostats in exhibit areas.
- Real-time energy monitoring was integrated for remote management via app.
- System controls were simplified for easier operation by staff.
Measurable Results & Operational Impact
The performance improvements have been substantial.
- 40–50% Annual Operating Cost Savings
The geothermal system significantly reduced energy costs while maintaining more stable indoor temperatures. - Gas Service Eliminated
The gas meter was completely removed, eliminating fossil fuel dependency and combustion risks inside a centuries-old wooden structure. Learn more about the sustainable innovations. - 2025 Electricity Usage: Approximately 23,000 kWh
At $0.30 per kWh, annual operating cost was approximately $6,900.
For a large, uninsulated 17th-century structure open to the public, these results represent an impressive balance between preservation and modern efficiency.
Why Geothermal Is Ideal for Historic and Institutional Buildings
This project highlights key advantages of geothermal systems in historic, museum, and landmark properties:
No Outdoor Condensers or Vents
Preserves exterior aesthetics and meets strict historic preservation requirements.
Elimination of Combustion
Removing gas-fired equipment reduces fire risk and protects irreplaceable historic materials.
One System for Heating & Cooling
A single geothermal system replaces multiple mechanical components, simplifying operation and maintenance.
Quiet Performance
Creates a more enjoyable experience for visitors in museums, libraries, and cultural spaces.
Improved Comfort & Humidity Control
Variable-speed operation provides better temperature stability and humidity management, critical for protecting antique furnishings and artifacts.
Remote Monitoring & Control
WiFi-connected monitoring allows building managers to oversee system performance and respond quickly to any issues.
A Model for Modernizing Historic Properties
The successful geothermal retrofit at Louisa May Alcott’s Orchard House demonstrates that even centuries-old, nationally recognized historic buildings can benefit from advanced, high-efficiency mechanical systems, without compromising architectural integrity.
For historic homeowners, museums, religious institutions, and preservation organizations throughout Massachusetts, geothermal heating and cooling offers:
- Long-term cost stability
- Reduced environmental impact
- Enhanced preservation protection
- Quiet, discreet performance
- Elimination of fossil fuel dependency
EnergySmart Alternatives specializes in designing geothermal systems for both new construction and complex retrofit applications, including some of New England’s most notable historic properties.
If your property requires an HVAC upgrade but must meet preservation standards, geothermal may be the solution that balances modern performance with historic responsibility. Contact us today to get started.
